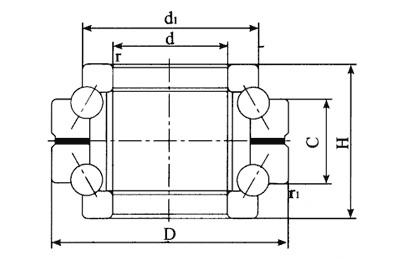

| 外形尺寸(mm) | 基本負(fù)荷(KN) | 極限轉(zhuǎn)速(r/min) | 重量(KG) | | d | d1min | D | H | C | rsmin | r1smin | 動 | 靜 | Old_spec | Designations |
| 150 | 190 | 210 | 72 | 36 | 2 | 1 | 116 | 320 | 1900 | 2500 | 7.26 |
| 150 | 200 | 225 | 90 | 45 | 2.1 | 0.6 | 192 | 390 | 1800 | 2400 | 12.5 |
| 160 | 200 | 220 | 72 | 36 | 2 | 1 | - | - | 1700 | 2300 | - |
| 160 | 212 | 240 | 96 | 48 | 2.1 | 1.1 | 185 | 680 | - | - | 14 |
| 170 | 210 | 230 | 72 | 36 | 2 | 1 | - | - | 1600 | 2100 | - |
| 170 | 230 | 260 | 108 | 54 | 2.1 | 1.3 | 221 | 590 | - | - | 18.5 |
| 180 | 227 | 250 | 84 | 42 | 2 | 1 | - | - | - | - | - |
| 180 | 248 | 280 | 120 | 60 | 2.1 | 0.3 | - | - | - | - | - |
| 190 | 237 | 260 | 84 | 42 | 2 | 1 | - | - | - | - | - |
| 190 | 258 | 290 | 120 | 60 | 2.1 | 0.3 | - | - | - | - | - |
| 200 | 252 | 280 | 96 | 48 | 2 | 1 | - | - | - | - | - |
| 200 | 274 | 310 | 132 | 66 | 3 | 0.3 | - | - | - | - | - |
| 220 | 272 | 300 | 96 | 48 | 2 | 1 | - | - | - | - | - |
| 220 | 304 | 340 | 144 | 72 | 3 | 1 | - | - | - | - | - |
| 240 | 292 | 320 | 96 | 48 | 2 | 1 | - | - | - | - | - |
| 240 | 322 | 360 | 144 | 72 | 3 | 1 | - | - | - | - | - |
| 280 | 348 | 380 | 120 | 60 | 2 | 1 | - | - | - | - | - |
| 280 | 374 | 420 | 164 | 82 | 3 | 1.5 | - | - | - | - | - |
| 300 | 384 | 420 | 144 | 72 | 3 | 1 | 310 | 1083 | - | - | 53.4 |
| 300 | 406 | 460 | 190 | 95 | 3 | 1.5 | - | - | - | - | - |
|
