| 外形尺寸(mm) | 基本負荷(KN) | 極限轉速(r/min) | 重量(KG) | | d | D | B | Rsmin | Fw(Ew) | d2(D2) | 動 | 靜 | 脂潤滑 | 油潤滑 |

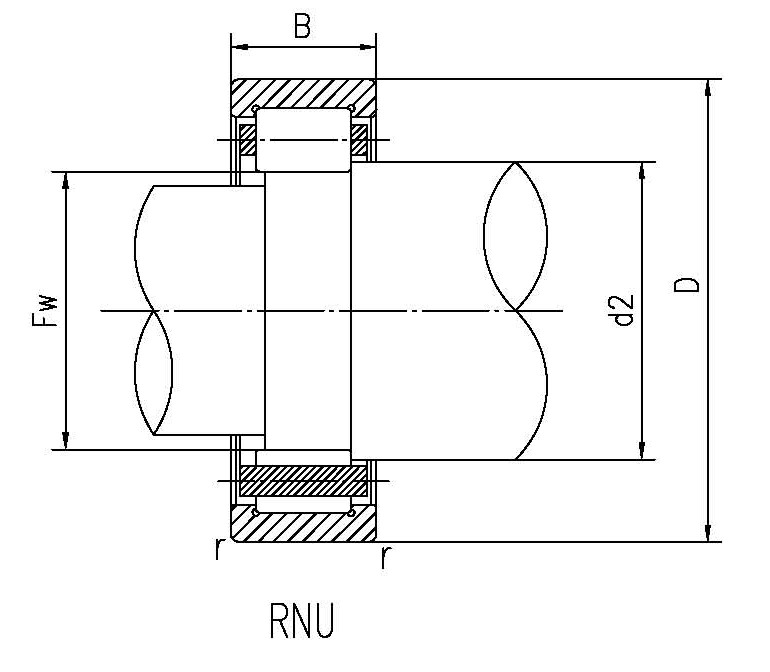

| | 130 | 22 | 1.1 | 96.5 | 100.8 | 70 | 100 | 5000 | 6000 | 0.8 |
| | 140 | 24 | 1.5 | 103 | 107.8 | 86 | 125 | 4800 | 5600 | 1 |
| | 160 | 30 | 2 | 107 | 114.2 | 150 | 200 | 3600 | 4300 | 2.1 |
| | 160 | 40 | 2 | 107 | 112.5 | 230 | 330 | 3600 | 4300 | 2.9 |
| | 160 | 55 | 2.1 | 95.5 | 100 | 260 | 340 | 3400 | 4000 | 4.8 |
| | 180 | 28 | 2 | 135 | 141.5 | 130 | 200 | 3400 | 4000 | 2.3 |
| | 180 | 34 | 2.1 | 120 | 128 | 180 | 250 | 3200 | 3800 | 2.7 |
| | 200 | 38 | 2.1 | 132.5 | 141.5 | 245 | 335 | 2800 | 3400 | 3.9 |
| | 215 | 40 | 2.1 | 143.5 | 153 | 280 | 390 | 2400 | 3000 | 4.7 |
| | 225 | 35 | 2.1 | 169.5 | 176.5 | 190 | 300 | 2600 | 3200 | 3.7 |
| | 230 | 40 | 3 | 156 | 165.5 | 285 | 415 | 2200 | 2800 | 5.5 |
| | 230 | 28 | 2 | 184 | 193 | 175 | 310 | 2400 | 3000 | 2.85 |
| | 250 | 42 | 3 | 169 | 179.5 | 330 | 490 | 2000 | 2600 | 7 |
| | 280 | 46 | 2 | 205 | 214.5 | 345 | 560 | 2000 | 2600 | 7.8 |

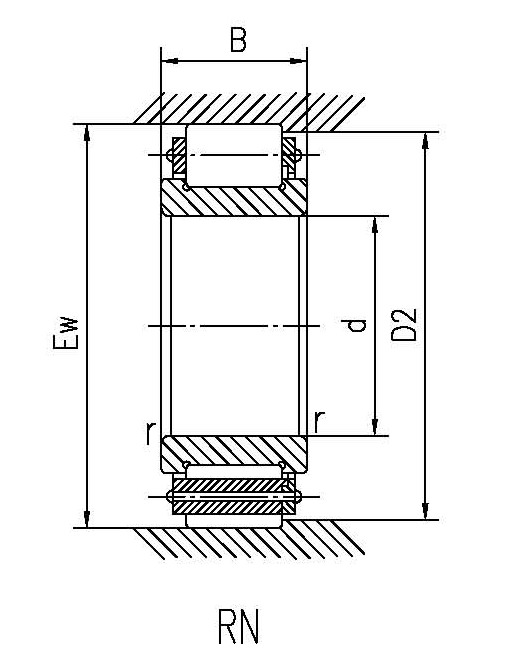

| 90 | | 30 | 2 | 143 | 136.4 | 155 | 205 | 3600 | 4300 | 1.75 |
| 95 | | 32 | 2.1 | 151.5 | 145.5 | 170 | 230 | 3400 | 4000 | 2 |
| 110 | | 38 | 2.1 | 178.5 | 170.2 | 245 | 335 | 2800 | 3400 | 3.2 |
| 140 | | 42 | 3 | 221 | 211.5 | 330 | 490 | 2000 | 2600 | 5.75 |
| 140 | | 62 | 4 | 260 | 245 | 590 | 800 | 1800 | 2200 | 13.5 |
| 150 | | 65 | 4 | 277 | 262 | 650 | 890 | 1700 | 2000 | 16.5 |
| 190 | | 78 | 5 | 345 | 325 | 940 | 1350 | 1200 | 1500 | 31 |
|
